Pocket Preamp - Single Channel Plug In Preamp
$149.95

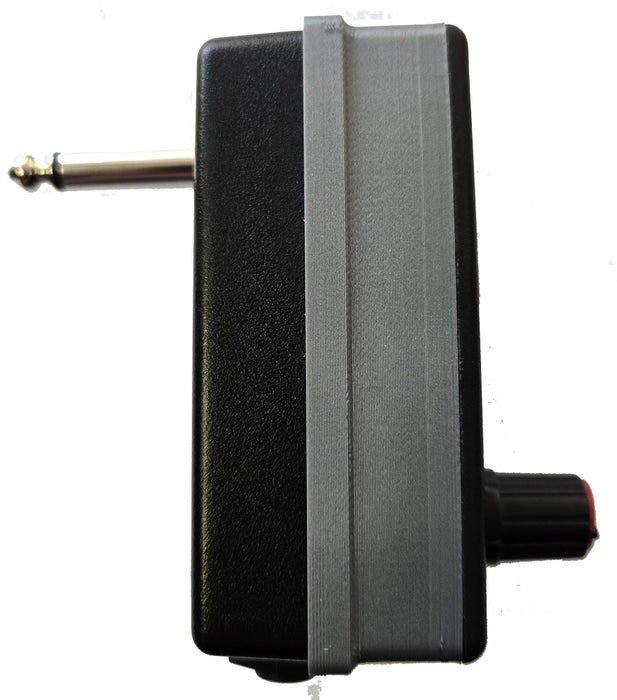

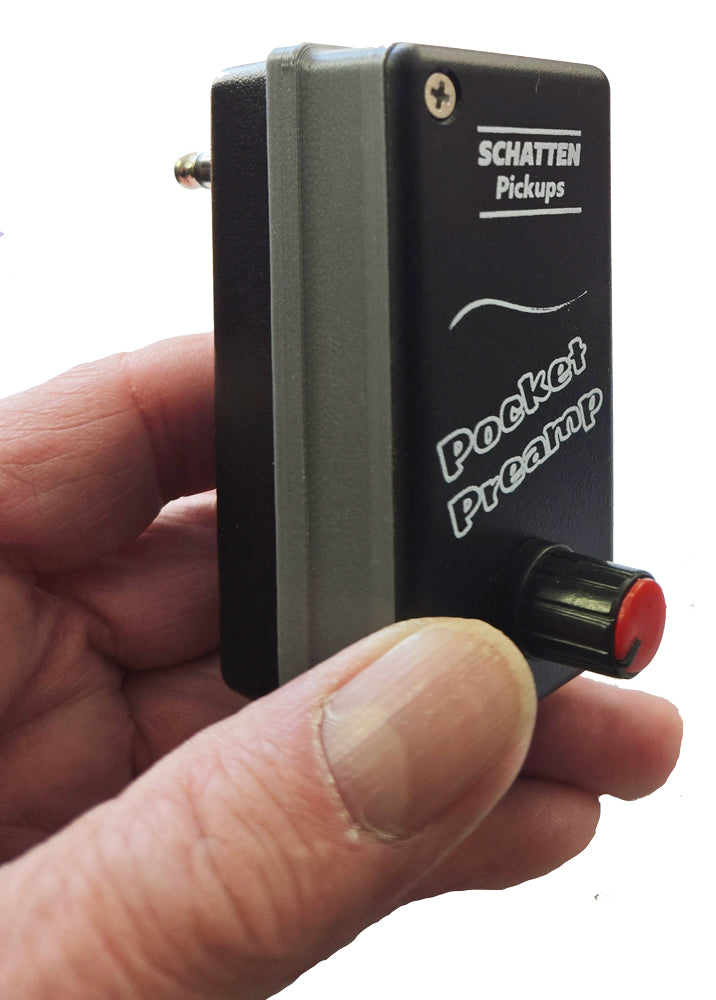

The Pocket Preamp is a compact single channel preamp that plugs into the endpin jack of a guitar with a passive pickup. It is 1.5 inch thick, 1.5 inches wide, and 3 inches in length (38mm x 38mm x 76mm). Weight is 4 ounces (118 grams) with a 9 volt battery inside.
Technical
Specifications:
- Input - 1/4" Mono Plug
- Output - 1/4" Mono Jack
- Input Impedance - up to 10 MOhm
- Output Impedance - Less than 3.5 kOhm
- Battery Life - 9 volt alkaline - 1500 hours
Trim pot on the circuit board for setting preamp input gain from 0 to 12 db.
View Instructions (pdf)
