V-1 Vintage Surface Mount Preamp
$139.95

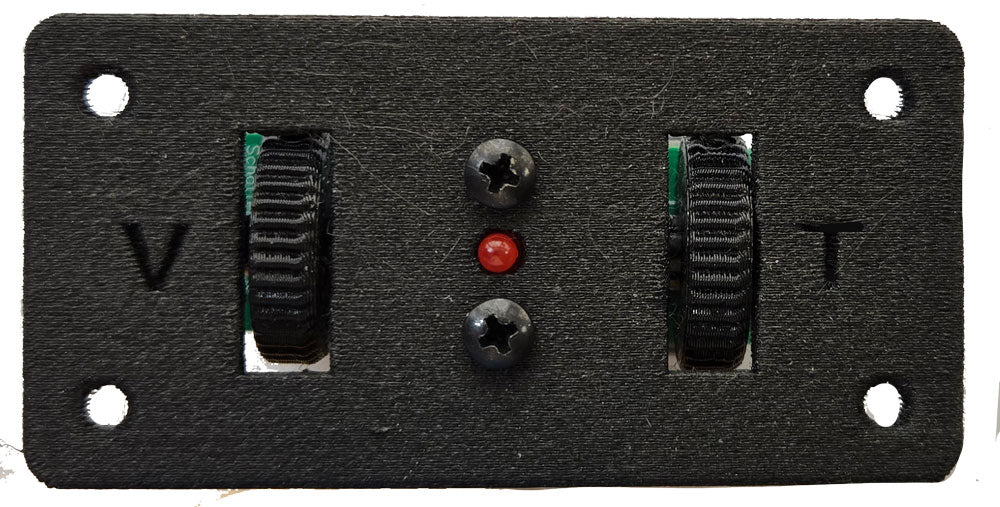

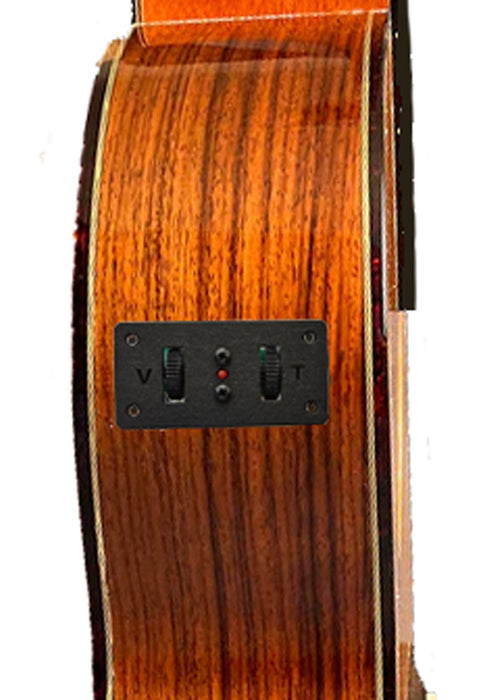

The V-1 is a vintage looking single channel preamp that is designed to be mounted on the side or top of an instrument. It can be installed using the provided cover plate, or using a cover plate of your own design, or directly through the instrument surface.
The preamp is designed to work with any piezo pickup. The controls of the preamp are volume and tone.
Technical
The V-1 comes complete with the cover plate, battery bag, 27" battery lead, endpin jack with 24" shielded output cable, and all necessary hardware. Note that the battery lead and output cable can be shortened to whatever length is required.
Specifications:
- Input - 1/4" Mono
- Output - 1/4" Mono
- Input Impedance - up to 10 MOhm
- Output Impedance - Less than 3.5 kOhm
- Low battery indicator - LED indicates 8v or less
- Battery Life - 9 volt alkaline - 1500 hours
- Instrument Cut Out Size Required - 20mm x 49mm (0.78" x 1.9")
- Cover Plate Dimensions - 35mm x 70mm (1.4" x 2.8")
Trim pot on the circuit board for setting preamp input gain from 0 to 12 db.
